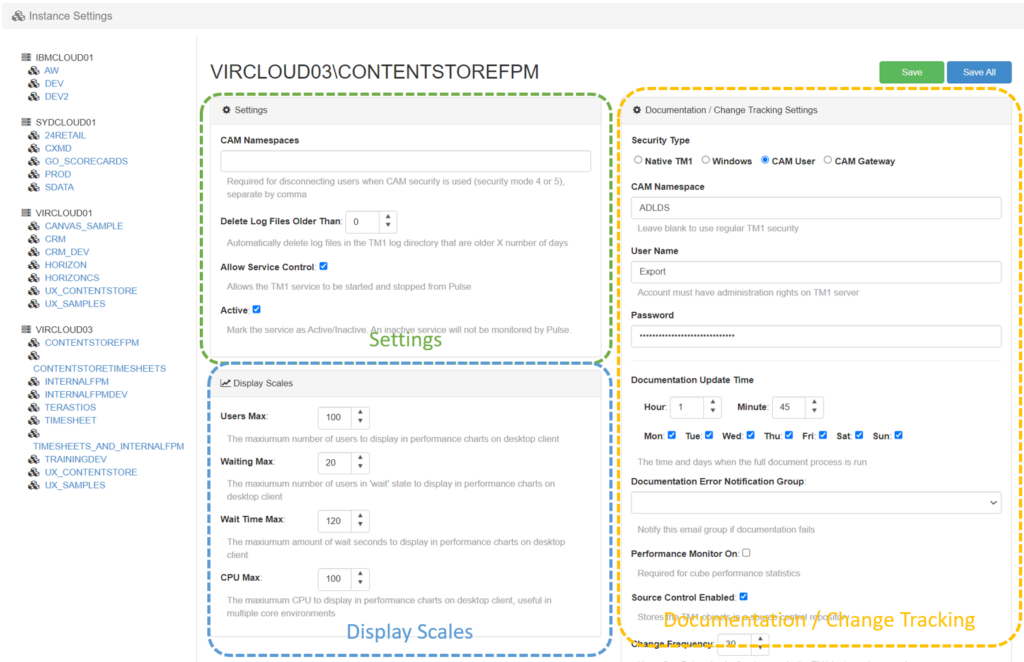

The instance settings need to be entered for each TM1 instance, the page can be split into three sections: Settings, Display Scales and Documentation / Change Tracking:

• CAM Namespaces: Required for disconnecting users when CAM security is used (security mode 4 or 5), separate by comma.

• Delete Log Files Older Than: Automatically delete log files in the TM1 log directory that are older X number of days.

• Allow Service Control: Allows the TM1 service to be started and stopped from Pulse.

• Active: Mark the service as Active/Inactive. An inactive service will not be monitored by Pulse.

This section is very important, this is where you enter the TM1 admin credentials allowing Pulse to connect to the TM1 instance:

• Connecting a TM1 instance

Other settings:

• Documentation Error Notification Group: Notify this email group if documentation fails

• Performance Monitor On: Required for cube performance statistics

• Source Control Enabled: Stores the TM1 objects in a source control repository

• Change Frequency: How often Pulse checks for changes in the TM1 instance in seconds

• Users Max: The maximum number of users to display in performance charts on desktop client.

• Waiting Max: The maximum number of users in ‘wait’ state to display in performance charts on desktop client.

• Wait Time Max: The maximum amount of wait seconds to display in performance charts on desktop client.

• CPU Max: The maximum CPU to display in performance charts on desktop client, useful in multiple core environments
