Slice v3.3 introduces a new way to build reports, it is called MDX Form. This report is driven by one MDX query bringing the following advantages:

• Easier to maintain because everything is driven by one MDX query

• Expand and collapse on rows and columns

• Create on the fly calculation by using calculated members in MDX

Creating a new MDX Form from Slice

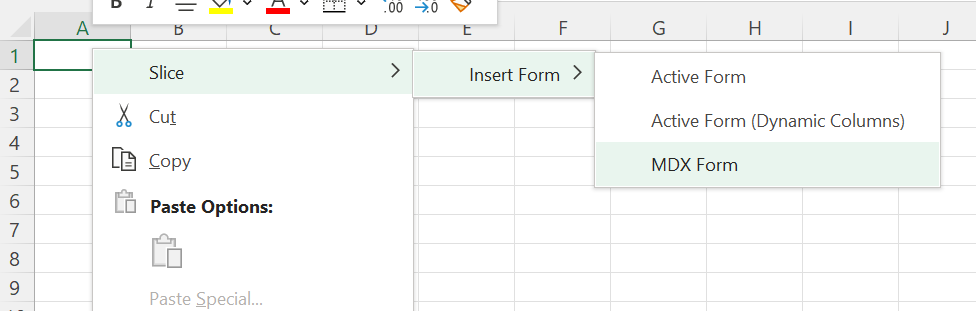

Just right click on a cell and then go to Slice > Insert Form and click on MDX Form:

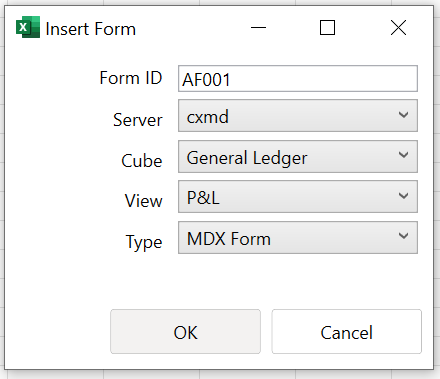

The Insert Form pop-up will open, just select the Server, Cube, View, the Type and finally click OK

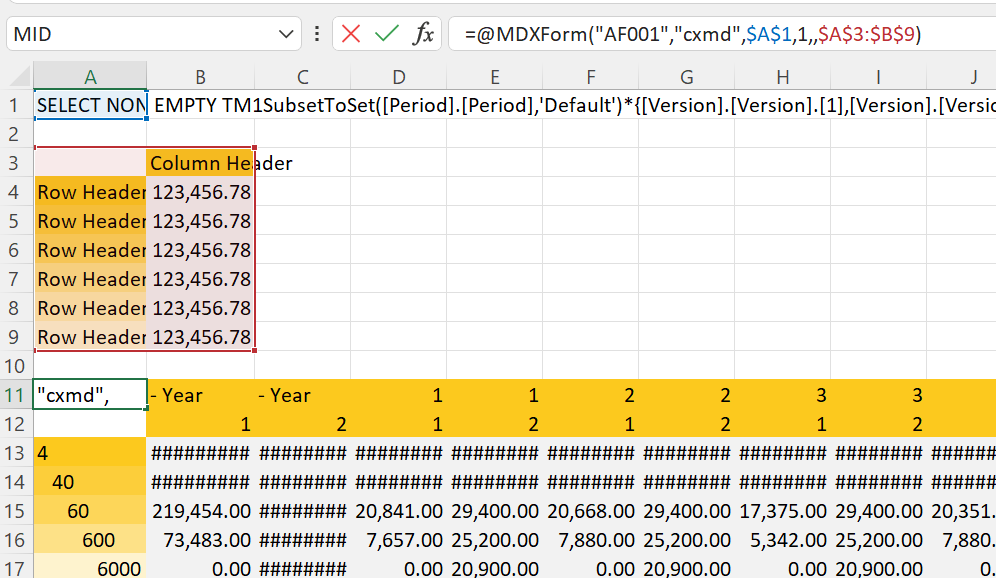

Slice is going to insert the function with the format area:

Creating a new MDX Form From Scratch

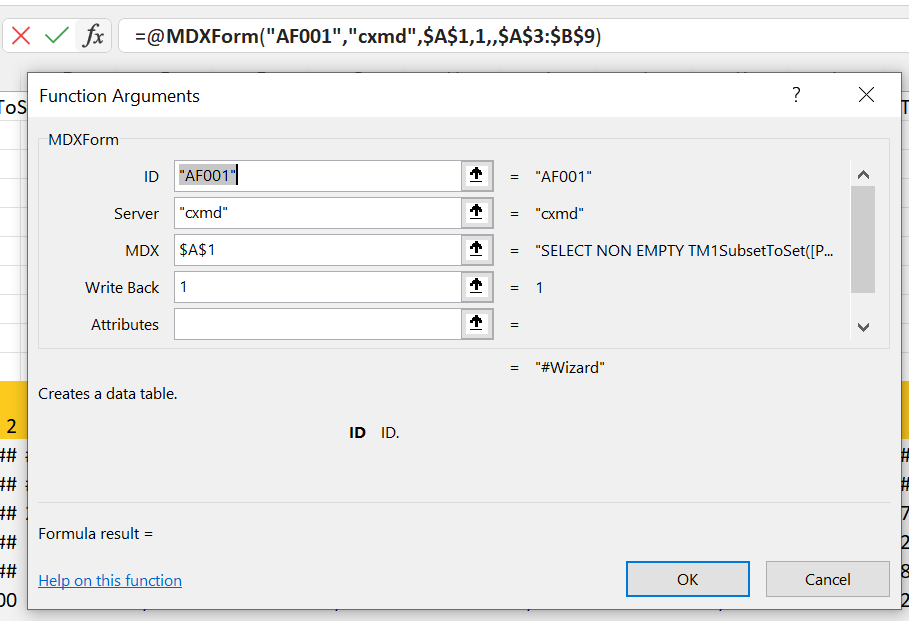

The report is driven by one function, MDXForm with the following parameters:

• ID: ID of the grid

• Server: Name of the TM1 instance in Slice.

• MDX: The MDX statement driving the report

• Write Back: 1 true and 0 false

• Attributes: list of attributes to show in rows or columns instead of the element ID

• Format Range

Using Attributes

To show attributes instead of Element ID, you need to use the following syntax:

• Dimension:Hierarchy:Attribute

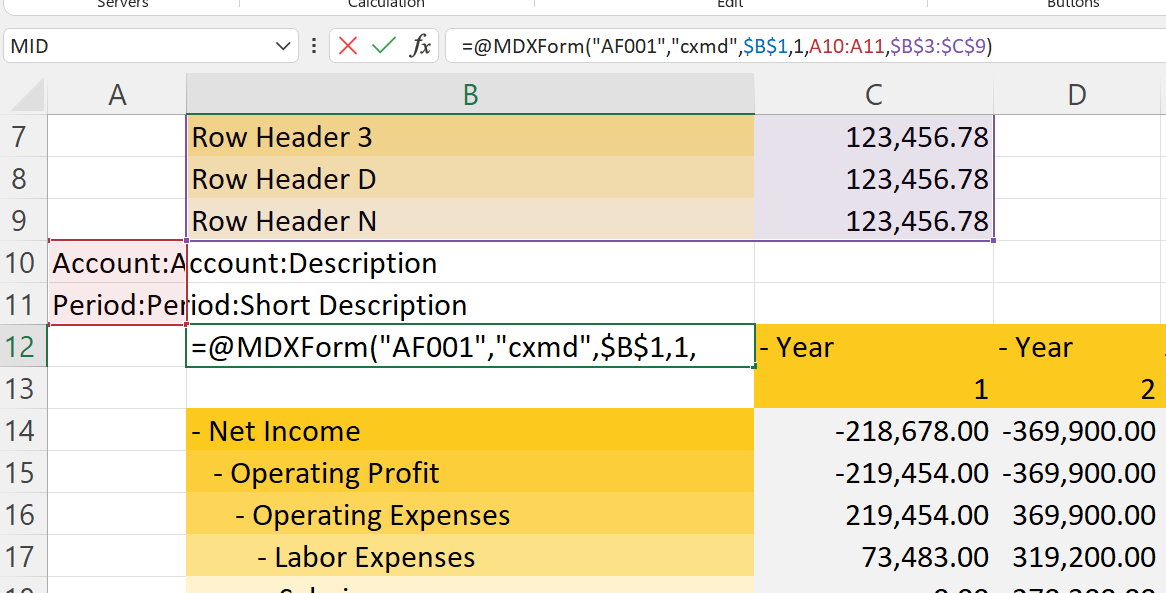

In the example below, we are showing the Description attribute for the Account dimension and the Short Description for Period:

Format Range

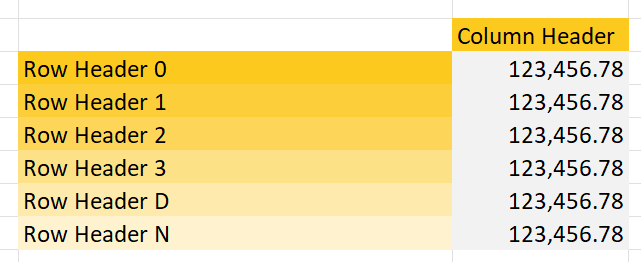

Format can be applied on the row headers and on the data cells as below:
